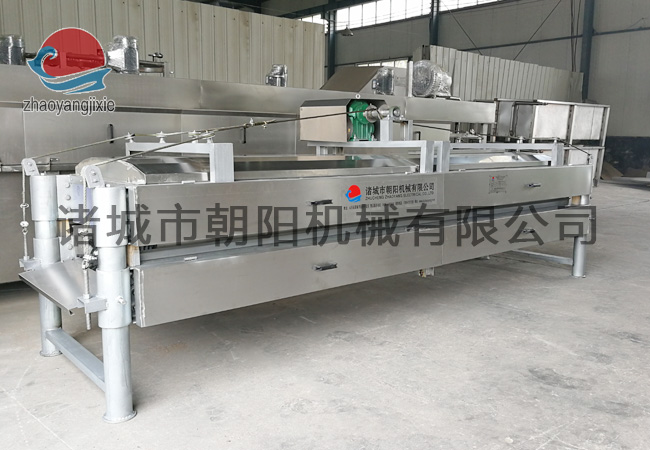

Horizontal depilator
Horizontal depilator
Name：34 roll electric regulating horizontal depilator
Details
Structural features of horizontal depilator:Rack use φ 100 round pipe and 25\u steel are welded and assembled. There are two rows of depilation rollers, 18 in the lower row and 16 in the upper row, which are used for depilation rollers φ 108 seamless steel pipe is processed by welding 45\\carbon steel shaft head at both ends. The depilation roller is composed of two types: one type is equipped with 14 rows, and each row has 8 depilation rods. The other is 13 rows, each row is equipped with 8 hair removal rods. Two kinds of depilation rods are cross assembled. Oil seals and 2mm thick stainless steel waterproof diaphragms are installed at both ends of the depilation roller. The transmission part adopts a 6-point roller chain (national standard). The upper cover and shield of the machine body are made of 1mm thick stainless steel plate. Two motors are used, one for 3KW and one for 4kw respectively. Technical parameters unhairing rate 96%, residual chicken rate 2%, unhairing time 50 seconds
Horizontal depilator equipment parameters:
Voltage: 380V
Power: 8kw
Overall dimension: 4200*1400*1200mm (this value may vary due to different customer needs)
Processing capacity: 1000-3000 PCS / h (this value will vary according to different customer needs)
Depilation roller length: 910mm
Equipment material: stainless steel cover, galvanized depilation roller
Equipment weight: 1600kg (this value will vary according to different customer requirements)
